Transmission Chain, the chains used to transmit power are collectively called transmission chain. Transmission chain is the main part of industrial chain, transmission chain mainly includes: short pitch precision roller chain and sleeve chain for transmission, automobile engine timing chain (or toothed chain), motorcycle chain, double pitch precision roller chain for transmission, toothed chain for transmission, curved plate roller chain for heavy-duty transmission, oil drilling rig transmission roller chain, bicycle chain and so on.
Transmission Chain, the chains used to transmit power are collectively called transmission chain. Transmission chain is the main part of industrial chain, transmission chain mainly includes: short pitch precision roller chain and sleeve chain for transmission, automobile engine timing chain (or toothed chain), motorcycle chain, double pitch precision roller chain for transmission, toothed chain for transmission, curved plate roller chain for heavy-duty transmission, oil drilling rig transmission roller chain, bicycle chain and so on.
The main specifications of short pitch precision roller chains for transmission are as follows:
1、A series short pitch precision roller chains:
03C/04C/06C/08A/10A/12A/16A/20A/24A/28A/32A/36A/40A/48A.
2、B Series Short Pitch Precision Roller Chains:
04/05B/06B/08B/10B/12B/16B/20B/24B/28B/32B/40B/48B/56B/64B/72B

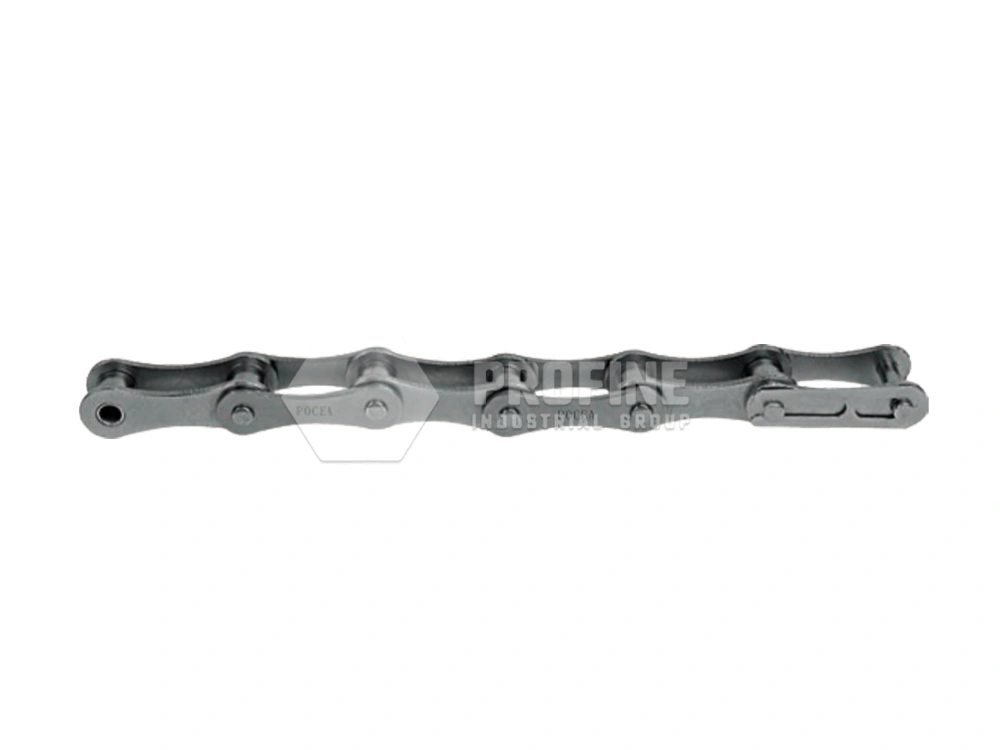

| Chain No. |
Pitch | Roller diameter | Width between inner plates | Pin diameter | Pin length | Inner plate depth | Plate thickness | Ultimate tensile strength | Average tensile strength | Weigth per meter | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| P | d₁ max | b₁ min | d₂ max | L max | LC max | h₂ max |
t/T max | Q min | Q₀ | q | ||
| mm | mm | mm | mm | mm | mm | mm | mm | kN/bf | kN | kg/m | ||
| 208A | 2040 | 25.40 | 7.95 | 7.85 | 3.96 | 16.6 | 17.8 | 12.0 | 1.50 | 14.1/3205 | 16.7 | 0.42 |
| 208B | 25.40 | 8.51 | 7.75 | 4.45 | 16.7 | 18.2 | 11.8 | 1.60 | 18.0/4091 | 19.4 | 0.45 | |
| 210A | 2050 | 31.75 | 10.16 | 9.40 | 5.08 | 20.7 | 22.2 | 15.0 | 2.03 | 22.2/5045 | 28.1 | 0.73 |
| 210B | 31.75 | 10.16 | 9.65 | 5.08 | 19.5 | 20.9 | 14.7 | 1.70 | 22.4/5091 | 27.5 | 0.65 | |
| 212A | 2060 | 38.10 | 11.91 | 12.57 | 5.94 | 25.9 | 27.7 | 18.0 | 2.42 | 31.8/7227 | 36.8 | 1.02 |
| 212B | 38.10 | 12.07 | 11.68 | 5.72 | 22.5 | 25.2 | 16.0 | 1.85 | 29.0/6591 | 32.2 | 0.76 | |
| 216A | 2080 | 50.80 | 15.88 | 15.75 | 7.92 | 32.7 | 36.5 | 24.0 | 3.25 | 56.7/12886 | 65.7 | 1.70 |
| 216AH | 2080H | 50.80 | 15.88 | 15.75 | 7.92 | 36.2 | 39.4 | 24.0 | 4.00 | 56.7/12886 | 70.0 | 2.17 |
| 216B | 50.80 | 15.88 | 17.02 | 8.28 | 36.1 | 39.1 | 21.0 | 4.15/3.1 | 60.0/13636 | 72.8 | 1.75 | |
| 220A | 2100 | 63.50 | 19.05 | 18.90 | 9.53 | 40.4 | 44.7 | 30.0 | 4.00 | 88.5/20114 | 102.6 | 2.55 |
| 220B | 63.50 | 19.05 | 19.56 | 10.19 | 41.3 | 45.0 | 26.4 | 4.5/3.5 | 95.0/14773 | 106.7 | 2.62 | |
| 224A | 2120 | 76.20 | 22.23 | 25.22 | 11.10 | 50.3 | 54.3 | 35.7 | 4.80 | 127.0/28864 | 147.3 | 4.06 |
| 224B | 76.20 | 25.40 | 25.40 | 14.63 | 53.4 | 57.8 | 33.2 | 6.0/4.8 | 160.0/36364 | 178.0 | 4.70 | |
| 228B | 88.90 | 27.94 | 30.99 | 15.90 | 65.1 | 69.5 | 36.7 | 7.5/6.0 | 200.0/45455 | 222.0 | 6.23 | |
| 232B | 101.60 | 29.21 | 30.99 | 17.81 | 66.0 | 71.0 | 42.0 | 7.0/6.0 | 250.0/56818 | 277.5 | 6.72 | |
