Industrial chains, also called plate chains, are widely used in forklift trucks, harbor stackers, textile machines, parking garages, drilling rigs, elevated working platforms, pipe bending machines and so on. -Through special design, selection of high alloy steel material, suitable heat treatment process and environmentally friendly surface treatment process, the products are characterized by high strength, high fatigue resistance, high abrasion resistance, corrosion resistance, high reliability and so on.
Industrial chains, also called plate chains, are widely used in forklift trucks, harbor stackers, textile machines, parking garages, drilling rigs, elevated working platforms, pipe bending machines and so on. -Through special design, selection of high alloy steel material, suitable heat treatment process and environmentally friendly surface treatment process, the products are characterized by high strength, high fatigue resistance, high abrasion resistance, corrosion resistance, high reliability and so on. Typical products: plate chain for forklift trucks, plate chain for forklift trucks, plate chain for forklift trucks, hollow pin plate chain, multi-plate pin chain, three-dimensional garage chain, etc., as well as fixtures, pear-shaped pieces and other accessories.
Features of Plate Chain Process Precise punching and blanking of chain plate Reasonable parameterized control of heat treatment Shot peening process improves fatigue performance Steel ball extrusion of chain plate Strong pre-stretching makes the chain plate uniformly subjected to force and improves its service life.
| Chain No. |
Pitch | Roller diameter | Width between inner plates | Pin diameter | Pin length | Inner plate depth | Plate thickness | Transverse pitch | Ultimate tensile strength | Average tensile strength | Weigth per meter | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| P | d₁ max | b₁ min | d₂ max | L max | LC max | h₂ max |
t/T max | Pt | Q min | Q₀ | q | |
| mm | mm | mm | mm | mm | mm | mm | mm | mm | kN/bf | kN | kg/m | |

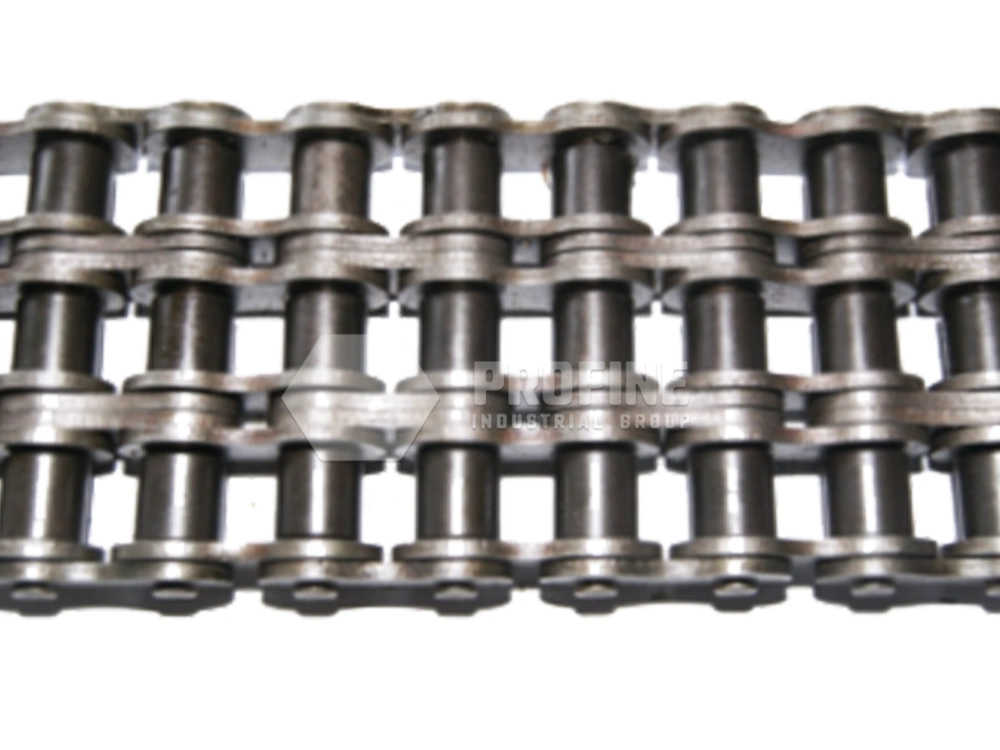

| 05B-3 | 8.000 | 5.00 | 3.00 | 2.31 | 19.5 | 20.2 | 7.10 | 0.80 | 5.64 | 11.1/2523 | 13.8 | 0.48 |
| *06B-3 | 9.525 | 6.35 | 5.72 | 3.28 | 33.5 | 34.6 | 8.20 | 1.30 | 10.24 | 24.9/5659 | 30.1 | 1.16 |
| 08B-3 | 12.700 | 8.51 | 7.75 | 4.45 | 45.1 | 46.1 | 11.80 | 1.60 | 13.92 | 47.5/10795 | 57.8 | 2.03 |
| 10B-3 | 15.875 | 10.16 | 9.65 | 5.08 | 52.7 | 54.1 | 14.70 | 1.70 | 16.59 | 66.7/15159 | 84.5 | 2.77 |
| 12B-3 | 19.050 | 12.07 | 11.68 | 5.72 | 61.5 | 63.1 | 16.00 | 1.85 | 19.46 | 86.7/19705 | 101.8 | 3.46 |
| 16B-3 | 25.400 | 15.88 | 17.02 | 8.28 | 99.8 | 101.2 | 21.00 | 4.15/3.1 | 31.88 | 160.0/36364 | 203.7 | 8.13 |
| 20B-3 | 31.750 | 19.05 | 19.56 | 10.19 | 114.2 | 117.9 | 26.40 | 4.50/3.5 | 36.45 | 250.0/56818 | 290.0 | 10.82 |
| 24B-3 | 38.100 | 25.40 | 25.40 | 14.63 | 150.1 | 154.6 | 33.20 | 6.00/4.8 | 48.36 | 425.0/96591 | 493.0 | 20.10 |
| 28B-3 | 44.450 | 27.94 | 30.99 | 15.90 | 184.2 | 188.7 | 36.70 | 7.50/6.0 | 59.56 | 530.0/120454 | 609.5 | 24.92 |
| 32B-3 | 50.800 | 29.21 | 30.99 | 17.81 | 183.2 | 188.2 | 42.00 | 7.00/6.0 | 58.55 | 670.0/152273 | 770.5 | 31.56 |
| 40B-3 | 63.500 | 39.37 | 38.10 | 22.89 | 226.8 | 233.8 | 52.96 | 8.50/8.0 | 72.29 | 950.0/215909 | 1092.5 | 48.10 |
| 48B-3 | 76.200 | 48.26 | 45.72 | 29.24 | 281.6 | 289.4 | 63.80 | 12.00/10.0 | 91.21 | 1500.0/340909 | 1710.0 | 75.00 |
| 56B-3 | 88.900 | 53.98 | 53.34 | 34.32 | 327.8 | 336.2 | 77.80 | 13.50/12.0 | 106.6 | 2240.0/545450 | 2464.0 | 107.18 |
| 64B-3 | 101.60 | 63.50 | 60.96 | 39.40 | 369.8 | 378.3 | 90.17 | 15.00/13.0 | 119.89 | 3000.0/681820 | 3300.0 | 136.00 |
| 72B-3 | 114.30 | 72.39 | 68.58 | 44.48 | 420.0 | 429.0 | 103.60 | 17.00/15.0 | 136.27 | 3750.0/852270 | 4125.0 | 180.00 |
